Double-silver coating-GLASSL-SYPGLASS

Series – Double Silver NE Series
Product	Color	Visible Light (%)			Direct Solar Radiation (%)		Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	NFRE U-Value W/㎡·K NFRC 100-2004		European U-Value W/㎡·K (EN 673)
Product	Color	Transmittance	Reflectance (Exterior)	Reflectance (Interior)	Transmittance	Reflectance (Exterior)	Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	Summer	Winter	European U-Value W/㎡·K (EN 673)
6YNE0175+12A+6	Neutral	66	11	12	34	30	0.40	0.46	1.64	1.68	1.6
6YNE0175T+12A+6	Neutral	66	11	12	34	30	0.40	0.46	1.64	1.69	1.6
6YNE0175J12A6	Neutral	66	10	13	33	31	0.38	0.44	1.60	1.66	1.6
6YNE0675+12A+6	Neutral	68	11	12	36	37	0.41	0.47	1.64	1.69	1.6
6YNE0675T+12A+6	Neutral	68	11	12	36	37	0.41	0.47	1.64	1.69	1.6
6YNE0675J+12A+6	Neutral	67	11	13	35	39	0.40	0.46	1.60	1.66	1.6
6YNE227512A6	Green	56	9	11	24	9	0.31	0.36	1.64	1.68	1.6
6YNE2575412A46	Blue	42	7	11	22	12	0.29	0.33	1.64	1.68	1.6
6YNE5875+12A+6	Dark Gray	33	6	10	19	14	0.26	0.30	1.64	1.68	1.6
6YNE6875+12A+6	Light Gray	48	8	12	24	15	0.31	0.35	1.64	1.68	1.6
6YNE0168+12A+6	Neutral	60	13	15	28	33	0.34	0.39	1.61	1.66	1.6
6YNE0168J+12A+6	Neutral	60	13	16	31	32	0.36	0.41	1.59	1.65	1.6
6YNE0668+12A+6	Neutral	61	14	15	31	38	0.35	0.40	1.61	1.66	1.6
6YNE0668J+12A+6	Neutral	61	13	16	32	40	0.37	0.42	1.59	1.65	1.6
6YNE2268+12A+6	Green	50	9	14	21	10	0.28	0.32	1.61	1.66	1.6
6YNE2568+12A+6	Blue	38	8	14	18	13	0.26	0.30	1.61	1.66	1.6
6YNE5868+12A+6	Dark Gray	31	6	13	15	14	0.23	0.26	1.61	1.66	1.6
6YNE6868+12A+6	Light Gray	43	9	14	20	15	0.27	0.30	1.61	1.66	1.6
6YNE0159+12A+6	Neutral	53	14	17	26	31	0.31	0.36	1.61	1.66	1.6
6YNE0159J+12A+6	Neutral	53	14	18	25	33	0.30	0.35	1.59	1.65	1.6
6YNE0659+12A+6	Neutral	54	15	17	27	38	0.32	0.37	1.61	1.66	1.6
6YNE0659J+12A+6	Neutral	54	15	18	26	42	0.31	0.36	1.59	1.65	1.6
6YNE2259+12A+6	Green	45	11	16	18	10	0.25	0.29	1.61	1.66	1.6
6YNE2559+12A+6	Blue	33	8	16	17	11	0.23	0.26	1.61	1.66	1.6
6YNE5859+12A+6	Dark Gray	27	7	15	14	14	0.21	0.24	1.61	1.66	1.6
6YNE6859+12A+6	Light Gray	40	9	15	20	15	0.26	0.30	1.61	1.66	1.6
6YNE0157+12A+6	Neutral	51	19	21	24	35	0.29	0.33	1.59	1.65	1.6
6YNE0157J+12A+6	Neutral	51	20	21	23	37	0.29	0.33	1.58	1.64	1.6
6YNE0657+12A+6	Neutral	52	19	21	25	45	0.30	0.35	1.59	1.65	1.6
6YNE0657J+12A+6	Neutral	52	21	20	25	44	0.30	0.34	1.58	1.64	1.6
6YNE2257+12A+6	Green	43	14	20	17	10	0.25	0.29	1.59	1.65	1.6
6YNE2557+12A+6	Blue	32	10	20	15	11	0.23	0.26	1.59	1.65	1.6
6YNE5857+12A+6	Dark Gray	26	8	20	13	11	0.21	0.24	1.59	1.65	1.6
6YNE6857+12A+6	Light Gray	36	11	19	17	16	0.24	0.27	1.59	1.65	1.6

Unless otherwise specified, the above data is calculated by WINDOW 6.3 developed by Lawrence Berkeley National Laboratory.
The glass performance data will be subject to the performance data sheet submitted by SYP. The above performance is for design reference only.
The tolerance for published data and photometric characteristics is +/- 3 percentage points. The tolerance for U-values is +/- 0.1W/㎡·K

Series – Double Silver NE Series
Product	Color	Visible Light (%)			Direct Solar Radiation (%)		Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	NFRE U-Value W/㎡·K NFRC 100-2004		European U-Value W/㎡·K (EN 673)
Product	Color	Transmittance	Reflectance (Exterior)	Reflectance (Interior)	Transmittance	Reflectance (Exterior)	Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	Summer	Winter	European U-Value W/㎡·K (EN 673)
6YNE0152+12A+6	Light Blue	46	15	17	21	31	0.26	0.30	1.60	1.65	1.6
6YNE0152J+12A+6	Neutral	45	14	18	21	32	0.27	0.31	1.58	1.64	1.6
6YNE0652+12A+6	Light Blue	48	16	18	23	38	0.29	0.33	1.60	1.65	1.6
6YNE0652J+12A+6	Neutral	46	16	19	23	40	0.28	0.32	1.58	1.64	1.6
6YNE2252+12A+6	Green	40	11	16	16	10	0.24	0.27	1.60	1.65	1.6
6YNE2252+12A+6	Blue	30	9	16	14	12	0.22	0.25	1.60	1.65	1.6
6YNE5852+12A+6	Dark Gray	24	7	16	12	14	0.19	0.22	1.60	1.65	1.6
6YNE6852+12A+6	Light Gray	35	9	16	17	15	0.24	0.27	1.60	1.65	1.6
6YNE0148J+12A+6	Neutral	45	20	19	22	38	0.27	0.31	1.61	1.66	1.6
6YNE0648J+12A+6	Light Blue	46	21	19	23	45	0.27	0.31	1.61	1.66	1.6
6YNE0145+12A+6	Light Blue	41	17	19	19	33	0.24	0.28	1.59	1.65	1.6
6YNE0145J+12A+6	Neutral	42	17	19	20	34	0.25	0.29	1.58	1.64	1.6
6YNE0645+12A+6	Light Blue	42	18	20	21	40	0.26	0.30	1.59	1.65	1.6
6YNE0645J+12A+6	Neutral	43	17	19	21	41	0.25	0.29	1.58	1.64	1.6
6YNE2245+12A+6	Green	35	13	18	14	10	0.21	0.24	1.59	1.65	1.6
6YNE2545+12A+6	Blue	26	10	18	14	13	0.20	0.23	1.59	1.65	1.6
6YNE5845+12A+6	Blue-Gray	21	8	18	10	14	0.18	0.21	1.59	1.65	1.6
6YNE6845+12A+6	Light Gray	32	11	18	15	15	0.22	0.25	1.59	1.65	1.6

Unless otherwise specified, the above data is calculated by WINDOW 6.3 developed by Lawrence Berkeley National Laboratory. The glass performance data will be subject to the performance data sheet submitted by SYP.
The above performance is for design reference only.

Series – Double Silver KE Series
Product	Color	Visible Light (%)			Direct Solar Radiation (%)		Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	NFRE U-Value W/㎡·K NFRC 100-2004		European U-Value W/㎡·K (EN 673)
Product	Color	Transmittance	Reflectance (Exterior)	Reflectance (Interior)	Transmittance	Reflectance (Exterior)	Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	Summer	Winter	European U-Value W/㎡·K (EN 673)
6YKE0166+12A+6	Neutral	62	11	12	31	27	0.37	0.42	1.63	1.67	1.6
6YKE0666+12A+6	Neutral	63	12	13	33	37	0.38	0.44	1.63	1.67	1.6
6YKE0157+12A+6	Neutral	52	12	15	26	27	0.32	0.36	1.61	1.66	1.6
6YKE0657+12A+6	Neutral	53	12	15	28	36	0.33	0.38	1.61	1.66	1.6
6YKE0148+12A+6	Blue	43	24	12	19	39	0.23	0.27	1.61	1.66	1.6
6YKE0648+12A+6	Blue	45	24	12	20	50	0.23	0.28	1.61	1.66	1.6
6YKE0146+12A+6	Blue	43	28	15	18	46	0.22	0.25	1.60	1.66	1.6
6YKE0646+12A+6	Blue	44	30	15	19	53	0.23	0.26	1.60	1.66	1.6
6YKE0138+12A+6	Neutral	36	26	13	16	39	0.20	0.23	1.60	1.66	1.6
6YKE0638+12A+6	Neutral	37	27	13	17	50	0.21	0.24	1.60	1.66	1.6

Unless otherwise specified, the above data is calculated by WINDOW 6.3 developed by Lawrence Berkeley National Laboratory. The glass performance data will be subject to the performance data sheet submitted by SYP.
The above performance is for design reference only.

Series – Double Silver DE Series
Product	Color	Visible Light (%)			Direct Solar Radiation (%)		Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	NFRE U-Value W/㎡·K NFRC 100-2004		European U-Value W/㎡·K (EN 673)
Product	Color	Transmittance	Reflectance (Exterior)	Reflectance (Interior)	Transmittance	Reflectance (Exterior)	Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	Summer	Winter	European U-Value W/㎡·K (EN 673)
6YDE0163+12A+6	Blue-Green	55	11	13	27	33	0.32	0.37	1.62	1.67	1.6
6YDE0663+12A+6	Blue-Green	57	10	13	29	38	0.34	0.39	1.62	1.67	1.6
6YDE0160+12A+6	Gray	56	20	17	28	31	0.33	0.38	1.61	1.66	1.6
6YDE0660+12A+6	Gray	58	19	17	29	39	0.34	0.39	1.61	1.66	1.6
6YDE0159+12A+6	Gray	54	16	15	28	27	0.34	0.39	1.62	1.67	1.6
6YDE0659+12A+6	Gray	57	16	14	31	34	0.36	0.42	1.62	1.67	1.6
6YDE0157+12A+6	Light Gray	51	21	21	24	33	0.29	0.34	1.60	1.65	1.6
6YDE0657+12A+6	Light Gray	53	22	21	26	39	0.31	0.35	1.60	1.65	1.6
6YDE0150+12A+6	Gray	45	27	29	23	37	0.28	0.32	1.59	1.65	1.6
6YDE0650+12A+6	Gray	46	28	30	25	43	0.30	0.33	1.59	1.65	1.6
6YDE0138+12A+6	Gray	34	25	22	17	34	0.22	0.25	1.59	1.65	1.6
6YDE0638+12A+6	Gray	35	25	21	19	39	0.23	0.26	1.59	1.65	1.6
6YDE0130+12A+6	Dark Blue	28	25	17	13	32	0.18	0.21	1.61	1.66	1.6
6YDE0630+12A+6	Dark Blue	29	25	19	14	37	0.19	0.22	1.61	1.66	1.6

Unless otherwise specified, the above data is calculated by WINDOW 6.3 developed by Lawrence Berkeley National Laboratory. The glass performance data will be subject to the performance data sheet submitted by SYP.
The above performance is for design reference only.

Series – Triple Layer Series
Product	Color	Visible Light (%)			Direct Solar Radiation (%)		Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	NFRE U-Value W/㎡·K NFRC 100-2004		European U-Value W/㎡·K (EN 673)
Product	Color	Transmittance	Reflectance (Exterior)	Reflectance (Interior)	Transmittance	Reflectance (Exterior)	Solar Heat Gain Coefficient (SHGC) NFRC 100-2004	Shading Coefficient (S.C.) NFRC 100-2004	Summer	Winter	European U-Value W/㎡·K (EN 673)
6YTE0158+12A+6	Blue-Gray	53	10	10	21	33	0.25	0.29	1.59	1.65	1.6
6YTE0658+12A+6	Blue-Gray	54	10	10	23	45	0.27	0.31	1.59	1.65	1.6
6YTE2258+12A+6	Green	44	8	10	16	10	0.23	0.27	1.59	1.65	1.6
6YTE2558+12A+6	Blue	33	7	10	13	13	0.20	0.23	1.59	1.65	1.6
6YTE5858+12A+6	Dark Gray	26	6	9	11	16	0.18	0.20	1.59	1.65	1.6
6YTE6858+12A+6	Light Gray	38	7	10	15	12	0.23	0.26	1.59	1.65	1.6

Unless otherwise specified, the above data is calculated by WINDOW 6.3 developed by Lawrence Berkeley National Laboratory. The glass performance data will be subject to the performance data sheet submitted by SYP.
The above performance is for design reference only.

ARCHITECTURAL

Double-silver coating

Double Silver Glass

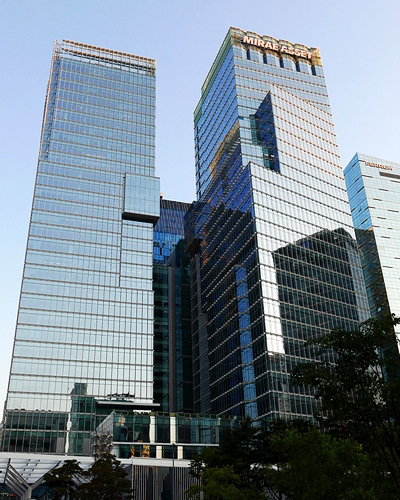

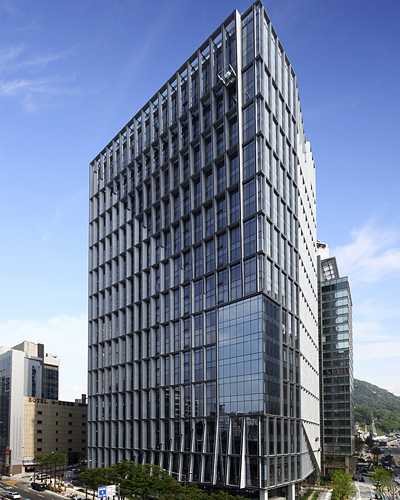

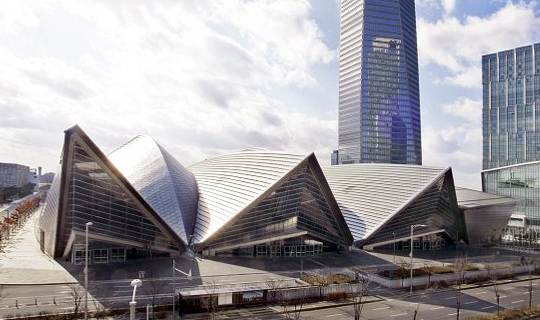

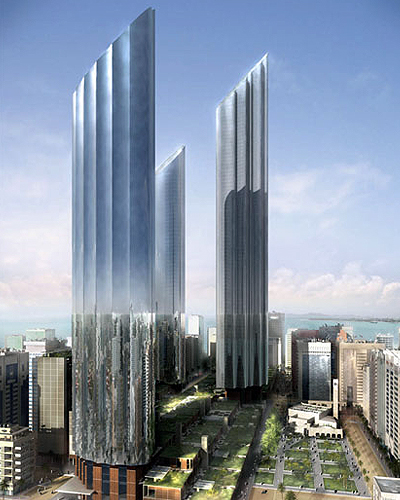

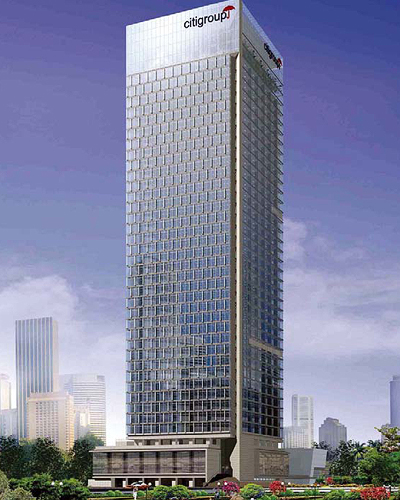

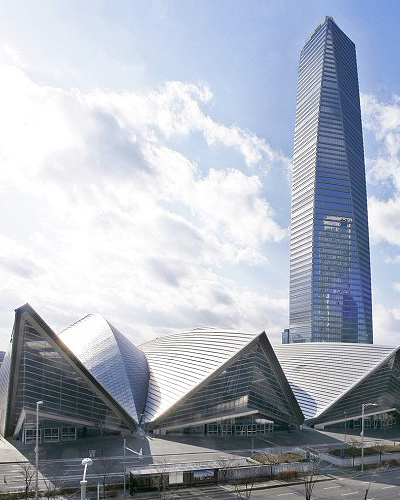

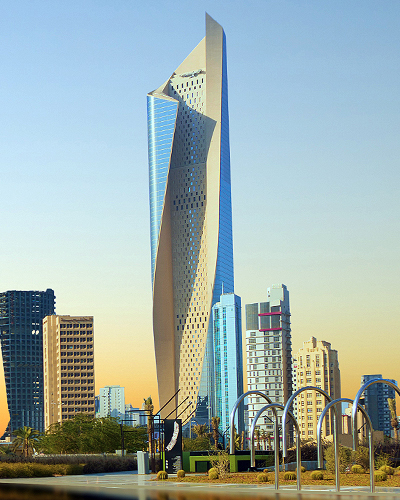

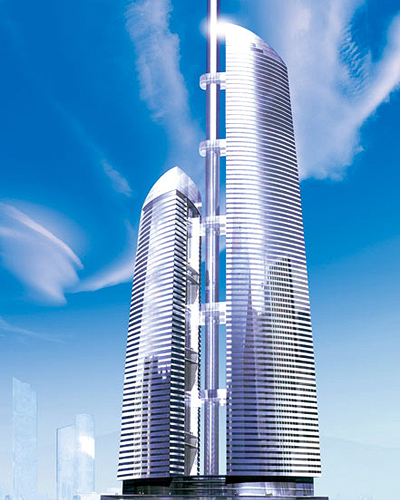

Double Silver Glass Construction Cases
