Curved glass
Bent Arc Processed Glass
Bent Arc Glass and Tempered Bent Arc GlassBent arc glass is made by heating glass in a furnace until it softens, then bending it using gravity and external force, and allowing it to cool naturally. Tempered bent arc glass or semi - tempered bent arc glass is produced by rapidly cooling the glass with compressed air after the same process. SYP can produce tempered bent arc laminated glass, tempered bent arc insulating glass, tempered bent arc coated glass, and other high - performance tempered bent arc glass.
Bent Arc Glass Specifications
- Maximum Size: 2,500 × 4,500㎜ (98 1/2" × 177")
- Thickness: 3 - 22㎜ (1/8" - 7/8")
Tempered Bent Arc Glass Specifications
- Maximum Size: 2,440 × 4,200㎜ (96" × 165")
- Minimum Size: 400 × 600㎜ (15 3/4" × 24")
- Minimum Bending Radius: 1,200㎜ (5㎜, 6㎜), 1,500㎜ (8㎜, 10㎜, 12㎜), 2,000㎜ (15㎜, 19㎜)
- Maximum Arch Height: 570㎜ (5㎜, 6㎜), 470㎜ (8㎜, 10㎜, 12㎜), 361㎜ (15㎜, 19㎜)
- Thickness: 5 - 19㎜
Certifications
- GB15763.2 Building Safety Glass Materials - Part 2: Tempered Glass
- China CCC Safety Glass Certification

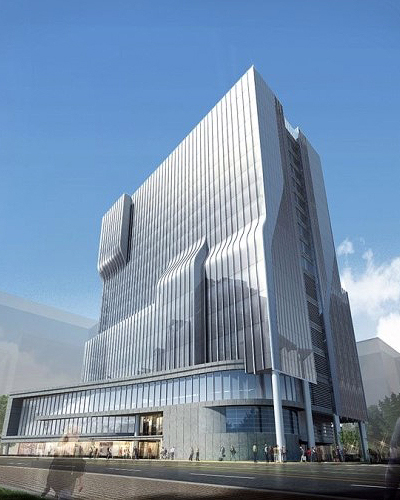

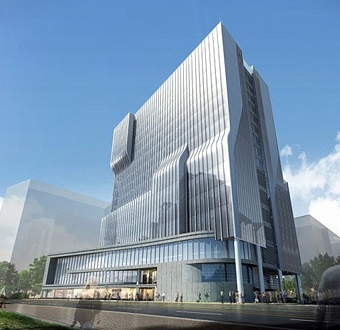

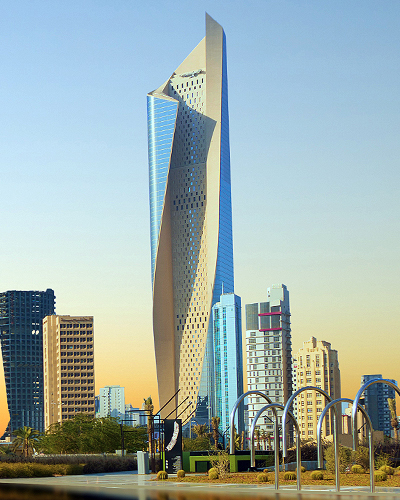

Bent Arc Glass Cases
Processing Dimensions
| Flat Tempered Glass | Tempered Bent Arc Glass | ||||
|---|---|---|---|---|---|
| Thickness | Size (Maximum) | Remarks | Size (Maximum) | Curvature Range (R) | Remarks |
| 4㎜ | 2,100 × 3,000 | FT/HT | 3,000 × 1,600 (Bent Arc) | 750 - 25000 | HT |
| 5㎜ | 3,000 × 5,000 | FT/HT | 3,000 × 1,600 (Bent Arc) | 750 - 25000 | FT/HT |
| FT/HT | 3,000 × 3,000 | 1500 - 25000 | HT | ||
| FT/HT | 4,000 × 2,000 (Bent Arc) | 1500 - 25000 | HT | ||
| 6㎜ | 3,000 × 5,000 | FT/HT | 3,000 × 1,600 (Bent Arc) | 750 - 25000 | FT/HT |
| FT/HT | 3,000 × 3,000 | 1500 - 25000 | FT/HT | ||
| FT/HT | 4,000 × 2,000 (Bent Arc) | 1500 - 14000 | HT | ||
| 8㎜ | 3,000 × 5,000 | FT/HT | 3,000 × 1,600 (Bent Arc) | 1000 - 25000 | FT/HT |
| FT/HT | 3,000 × 3,000 | 1500 - 25000 | FT/HT | ||
| FT/HT | 14,000 × 2,000 (Bent Arc) | 1500 - 14000 | HT | ||
| 10㎜ | 2,400 × 14,000 | FT/HT | 3,000 × 1,600 (Bent Arc) | 1000 - 25000 | FT/HT |
| FT/HT | 3,000 × 3,000 | 1500 - 25000 | FT/HT | ||
| FT/HT | 14,000 × 2,000 (Bent Arc) | 2000 - 14000 | FT/HT | ||
| 15㎜ | 2,400 × 14,000 | FT | 14,000 × 2,000 (Bent Arc) | 2500 - 14000 | FT |
| 19㎜ | 2,400 × 14,000 | FT | 14,000 × 2,000 (Bent Arc) | 2500 - 14000 | FT |
