Ultra-clear float glass / tinted float glass
Ultra Clear Float Glass
LOW IRON FLOAT GLASS- Visible light transmittance exceeds 90%.
- Applies a special process with strong anti - fouling properties.
- Due to low iron content, high brightness, and excellent lighting performance.
- After strengthening treatment, it can prevent the rainbow phenomenon.
Specifications
- Thickness: 3 - 19㎜ (1/8" - 3/4")
- Maximum size: 3,660 × 12,000㎜ (144" - 472")

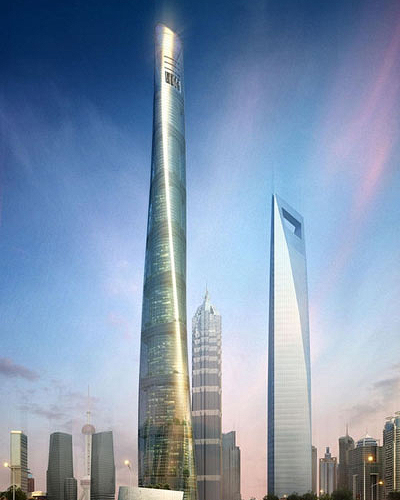

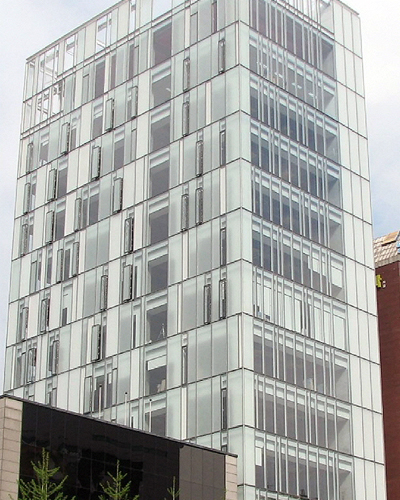

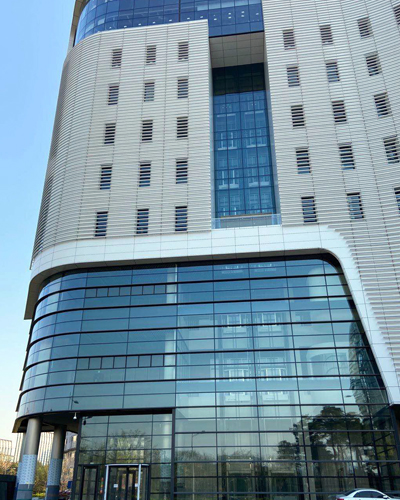

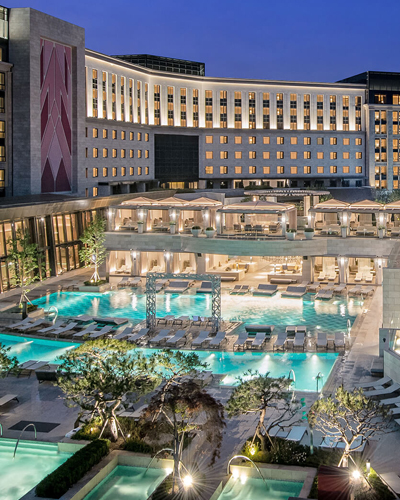

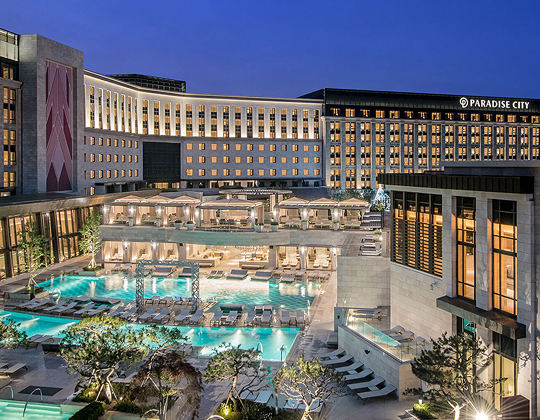

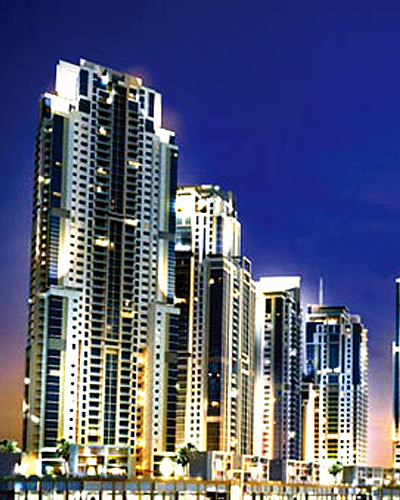

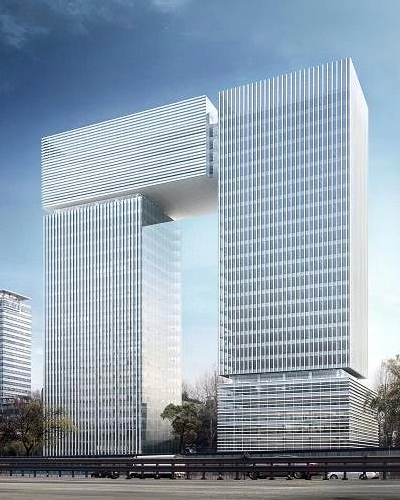

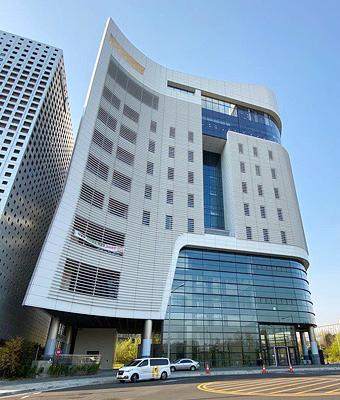

Ultra Clear Float Glass Construction Cases
Ultra Clear Float Glass Detailed Specifications
| Thickness (㎜) |
Visible Light (%) |
Direct Solar Radiation (%) |
g - value ISO 9050 (AM = 1.0) |
Solar Heat Gain Coefficient (SHGC) NFRC 100 - 2004 |
Shading Coefficient (S.C.) NFRC 100 - 2004 |
NFRE U - value W/㎡·K NFRC 100 - 2004 | European U - value W/㎡·K (EN 673) |
STC (dB) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmittance | Reflectance | Transmittance | Reflectance | Summer | Winter | ||||||
| 5 | 92 | 8 | 90 | 8 | 0.90 | 0.90 | 1.04 | 5.27 | 5.84 | 5.7 | 30 |
| 6 | 91 | 8 | 89 | 8 | 0.90 | 0.90 | 1.04 | 5.24 | 5.81 | 5.7 | 31 |
| 8 | 91 | 8 | 88 | 8 | 0.89 | 0.89 | 1.03 | 5.19 | 5.74 | 5.7 | 33 |
| 10 | 91 | 8 | 88 | 8 | 0.88 | 0.89 | 1.02 | 5.13 | 5.67 | 5.6 | 34 |
| 12 | 91 | 8 | 87 | 8 | 0.88 | 0.89 | 1.02 | 5.07 | 5.61 | 5.5 | 36 |
| 15 | 90 | 8 | 86 | 8 | 0.87 | 0.88 | 1.01 | 4.99 | 5.51 | 5.4 | 38 |
Tinted Float Glass
TINTED FLOAT- Absorbs solar energy
- Blocks solar heat
- Can be used as raw material for various composite glasses
Colors
- F Green, H Green, Blue, Eurogrey, PG (black)
Specifications
- Thickness: 2 - 12㎜ (5/64" - 7/16")
- Maximum size: 3,300 × 6,500㎜ (130" - 256")
Tinted Float Glass Detailed Specifications
| Thickness (㎜) |
Visible Light (%) |
Direct Solar Radiation (%) |
g - value ISO 9050 (AM = 1.0) |
Solar Heat Gain Coefficient (SHGC) NFRC 100 - 2004 |
Shading Coefficient (S.C.) NFRC 100 - 2004 |
NFRE U - value W/㎡·K NFRC 100 - 2004 | European U - value W/㎡·K (EN 673) |
STC (dB) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmittance | Reflectance | Transmittance | Reflectance | Summer | Winter | ||||||
| 5 | 77 | 7 | 47 | 6 | 0.60 | 0.62 | 0.71 | 5.27 | 5.84 | 5.7 | 30 |
| 6 | 75 | 7 | 44 | 6 | 0.58 | 0.59 | 0.68 | 5.24 | 5.81 | 5.7 | 31 |
| 8 | 69 | 7 | 36 | 5 | 0.52 | 0.54 | 0.62 | 5.19 | 5.74 | 5.7 | 33 |
| 10 | 64 | 6 | 30 | 5 | 0.48 | 0.51 | 0.58 | 5.13 | 5.67 | 5.6 | 34 |
| 12 | 60 | 6 | 26 | 5 | 0.45 | 0.48 | 0.55 | 5.07 | 5.61 | 5.5 | 36 |
| Thickness (㎜) |
Visible Light (%) |
Direct Solar Radiation (%) |
g - value ISO 9050 (AM = 1.0) |
Solar Heat Gain Coefficient (SHGC) NFRC 100 - 2004 |
Shading Coefficient (S.C.) NFRC 100 - 2004 |
NFRE U - value W/㎡·K NFRC 100 - 2004 | European U - value W/㎡·K (EN 673) |
STC (dB) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmittance | Reflectance | Transmittance | Reflectance | Summer | Winter | ||||||
| 6 | 55 | 6 | 45 | 5 | 0.58 | 0.61 | 0.70 | 5.24 | 5.81 | 5.7 | 31 |
| 8 | 48 | 6 | 38 | 5 | 0.53 | 0.55 | 0.64 | 5.19 | 5.74 | 5.7 | 33 |
| Thickness (㎜) |
Visible Light (%) |
Direct Solar Radiation (%) |
g - value ISO 9050 (AM = 1.0) |
Solar Heat Gain Coefficient (SHGC) NFRC 100 - 2004 |
Shading Coefficient (S.C.) NFRC 100 - 2004 |
NFRE U - value W/㎡·K NFRC 100 - 2004 | European U - value W/㎡·K (EN 673) |
STC (dB) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmittance | Reflectance | Transmittance | Reflectance | Summer | Winter | ||||||
| 6 | 74 | 7 | 54 | 6 | 0.64 | 0.66 | 0.76 | 5.24 | 5.81 | 5.7 | 31 |
| 8 | 69 | 7 | 45 | 6 | 0.58 | 0.61 | 0.70 | 5.19 | 5.74 | 5.7 | 33 |
The above data is calculated by WINDOW 6.3 developed by Lawrence Berkeley National Laboratory, unless otherwise specified by explicit standards.
The glass performance data shall be subject to the performance data sheet submitted by SYP. The above performance is for design reference only.
